Important:  These instructions contain steps that tell you how to delete files from Systems folder of your machine to resolve the issues with displaying images from Charleston County. However, serious problems might occur if you delete the files incorrectly or delete wrong files. Therefore, make sure that you follow these steps carefully. For added protection, make sure that when you delete the file it goes to Recycle Bin. Then, you can restore the files, if incorrect files were deleted by mistake.

Purpose:  The main purpose of these instructions is to guide the users in properly deleting the ActiveX components mentioned in Step 5 and Step 7, from Windows System32 directory.

Instructions for Windows Vista (All Versions)

The following steps need to be performed in sequence:

1.                 Start Windows Explorer. To do that, right click on Windows Icon at the lower left corner of the taskbar and select Explore as shown below.

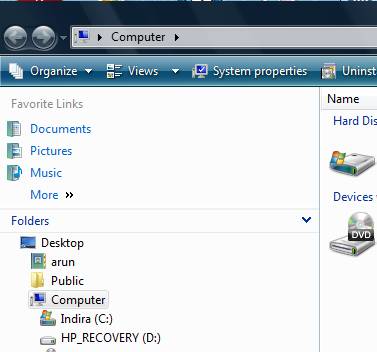

2.                 Now system will open up a screen with “Computer” as the title as shown below

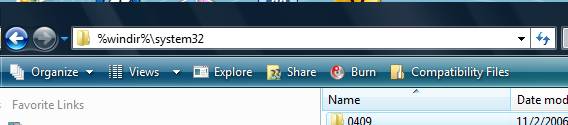

3.                 Now highlight the word “Computer” at the top of the screen and type %WINDIR%\System32 and press Enter key

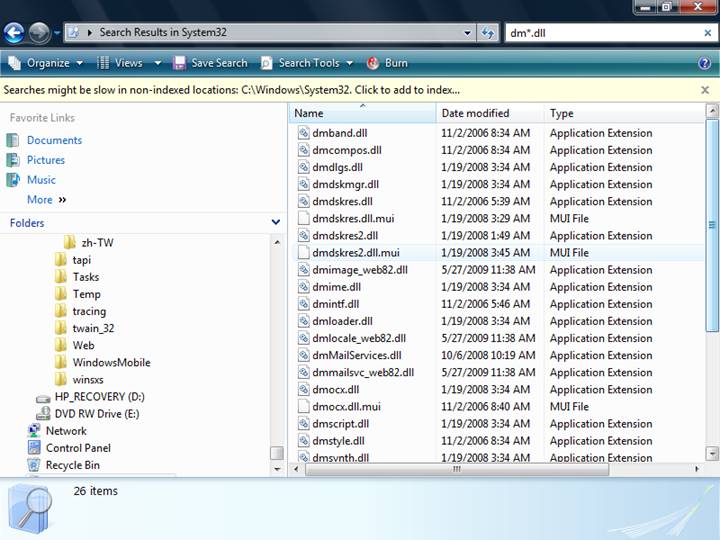

4.                 Now in the Search box at the top right corner (see figure below), enter dm*.dll and click on search button

5.                 Now system will show the files (see figure in next page) , starting with dm. Look for the following files and, if found, delete them:

dmimage_web.dll

dmimage_web82.dll

dmlocale_web.dll

dmlocale_web82.dll

dmmailsvc_web.dll

dmmailsvc_web82.dll

dmtrace_web.dll

dmtrace_web82.dll

If you don’t find a file, that is okay; skip that file and go to next file.

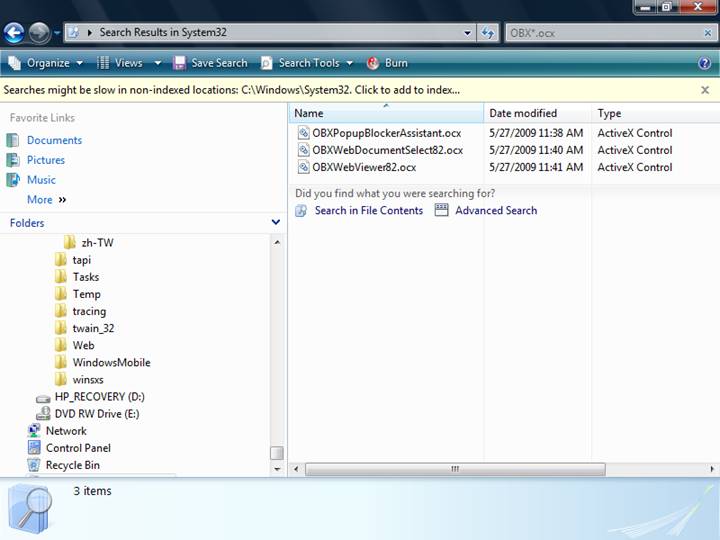

6.                 Now in the Search box at the top right corner (see figure below), enter OBX*.ocxs and click on search button

7.                 Now system will show the files, starting with OBX. Look for each of the following files and, if found, delete them:

OBXFileSvc.ocx

OBXFileSvc82.ocx

OBXPopupBlockerAssistant.ocx

OBXPrint.ocx

OBXPrint82.ocx

OBXScan.ocx

OBXScan82.ocx

OBXWebDocumentSelect.ocx

OBXWebDocumentSelect82.ocx

OBXWebPrint.ocx

OBXWebPrint82.ocx

OBXWebViewer.ocx

OBXWebViewer82.ocx

If you don’t find a file, that is okay; skip that file and go to next file.

8.                 Download the latest version of the ActiveX control from the location http://www.charlestoncounty.org/ActiveXControl/onbase_activex_8_2.msi

9.                 Follow the instructions of the setup program to install the correct version of the ActiveX control

10.            Launch new Internet Explorer window, and then try viewing image
